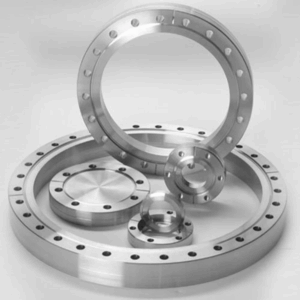

SS CF Flanges Product Description
Stainless Steel (SS) CF Flanges, also known as Stainless Steel Compact Flanges, are specialized components used in piping systems to connect pipes, valves, pumps, and other equipment. These flanges are designed to provide a robust and leak-proof connection while minimizing the overall weight and space required in the installation. Made from high-quality stainless steel, they offer excellent corrosion resistance, making them suitable for various applications in industries such as oil and gas, chemical processing, and water treatment.
Key Features:
- Material: Made from high-grade stainless steel (commonly 304 or 316).
- Design: Compact design that reduces weight and space requirements.
- Corrosion Resistance: Excellent resistance to rust and corrosion, suitable for harsh environments.
- Pressure Ratings: Available in various pressure ratings to accommodate different system requirements.
- Versatility: Compatible with a wide range of piping systems and applications.
Uses:
- Oil and Gas Industry: Used in pipelines and processing plants for transporting fluids.
- Chemical Processing: Ideal for connecting equipment in chemical plants due to their resistance to corrosive substances.
- Water Treatment: Utilized in water treatment facilities for reliable and durable connections.
- Marine Applications: Suitable for use in marine environments where corrosion resistance is critical.
Technical Data
| Specification | Details |
|---|---|
| Material | Stainless Steel (304/316) |
| Standard | ANSI, ASME, or custom |
| Size Range | 1/2″ to 24″ |
| Pressure Rating | 150, 300, 600, 900, 1500 PSI |
| Temperature Range | -50°C to 400°C |
| Finish | Smooth, polished, or custom |
| Weight | Lightweight compared to standard flanges |
| Connection Type | Welded, threaded, or slip-on |
Advantages:
- Reduced Weight: The compact design allows for easier handling and installation.
- Space-Saving: Ideal for applications with limited space.
- Enhanced Performance: Provides a secure and leak-proof connection, reducing the risk of failures.
Conclusion
SS CF Flanges are an essential component in modern piping systems, offering a combination of strength, durability, and versatility. Their unique design and material properties make them suitable for a wide range of industrial applications, ensuring reliable performance in challenging environments.
