Spinpro E9n Speed Programmer Controller

The Price of Single Phase Spinpro E9N Speed Programmer Controller of is ₹ 14,500/Piece. Buy Single Phase Spinpro E9N Speed Programmer Controller from Indus Electronics India (P) Ltd.. Get Single Phase Spinpro E9N Speed Programmer Controller details here offered by Indus Electronics India (P) Ltd. at Coimbatore - 641014. Get Single Phase Spinpro E9N Speed Programmer Controller in Nehru Nagar West.

spinpro e9n speed programmer controller

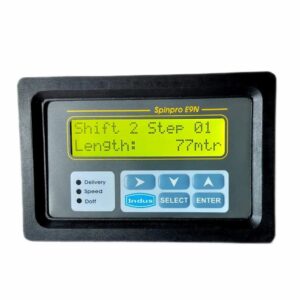

The Spinpro-E9N is a Speed Programmer and Controller with energy monitor for spinning machines. The Speed Change over is done based on the length of the yarn produced.

Spinpro-E9N helps to improve the production and also reduce the end breakages. Energy Measurement helps to optimize the production with energy consumption.

  • Production in Hanks (shift wise and total), production in Kg (shift wise), Spindle Speed, delivery speed, Production rate, TPI, TPM, Runtime and Downtime (shift wise and total) can be monitored.
  • Voltage, current, frequency, Power factor, Total KW, Total KVA, Unit/Kg (shift wise), Energy consumption (shift wise and total).
  • CAM position can be sensed to start new doff.
  • Ten speed patterns can be preprogrammed for different counts.
  • Speed pattern can be set up to 25 steps.
  • Password protection to avoid unauthorized settings.
  • Programmable compulsory slow speed and time.
  • Programmable delay time for power on slow speed.
  • Programmable acceleration / deceleration time reduces yarn breaks [only for inverter drive type].
  • Pre Doff and final Doff indication.
  • Centralized computer control through RS485 communication.
  • TPI / TPM setting facility.
  • Special program for ring traveler with maximum of 5 steps.
  • External switch is available to run the machine in compulsory slow speed.
  • Shift wise and total doff can be monitored in view menu.
Buy Spinpro E9n Speed Programmer Controller at ₹ 14,500/Piece

Seller

Indus Electronics India (P) Ltd.

Address

Plot No.3, Elec.indl.estate, Civil Aerodrome P.o., Nehru Nagar West,Coimbatore - 641014, Tamil Nadu, India

Owner

Jagadeesan Ranganathan

Web

Indus Electronics India (P) Ltd.

Locate

Goto Direction

Rating

Rate Plz 🙏🏻


Single Phase Spinpro E9N Speed Programmer Controller Product Specification

Output current
1A
Phase
Single Phase
Brand
Indus
Model No.
Spinpro E9N
Voltage
230 V
Size/Dimension
160mm(L) x 104mm (H) x 150mm(D)
Usage/Application
Allow You To Easily Set And Adjust The Speed Of A Motor
Mounting Type
Panel Mount
Country of Origin
Made in India
Input Voltage
260 V
Frequency
50 Hz
Inputs
Inductive Type Proximity Switch 3 Numbers
Display Digit Count
16 Character
Display Type
LCD
Panel Cutout
145mm x 85 mm

About Indus Electronics India (P) Ltd. [Single Phase Spinpro E9N Speed Programmer Controller]

GST Registration Date01-07-2017
Legal Status of FirmLimited Company
Nature of BusinessManufacturer
Number of EmployeesUpto 10 People
Annual Turnover40 L - 1.5 Cr
Listing Member SinceApr 2021
GST33AABCI4901L1ZR
Import Export Code (IEC)32950*****
spinpro e9n speed programmer controller

Spinpro E9n Speed Programmer Controller

The Spinpro E9n Speed Programmer Controller is a state-of-the-art device designed for precise control of electric motors in various applications. This controller is engineered to enhance the performance and efficiency of your motor systems, making it an ideal choice for both industrial and commercial uses. With its advanced programming capabilities, the E9n allows users to customize speed settings, acceleration, and deceleration profiles, ensuring optimal operation tailored to specific requirements.

Key Features and Uses

  • Versatile Applications: The Spinpro E9n is suitable for a wide range of applications, including conveyor systems, fans, pumps, and other motor-driven equipment.
  • User-Friendly Interface: The controller features an intuitive interface that simplifies programming and adjustments, making it accessible for users of all skill levels.
  • Customizable Settings: Users can easily set parameters such as maximum speed, ramp-up time, and braking options to suit their operational needs.
  • Energy Efficiency: By optimizing motor performance, the E9n helps reduce energy consumption, leading to cost savings and a lower environmental impact.
  • Robust Design: Built to withstand harsh industrial environments, the Spinpro E9n is durable and reliable, ensuring long-term performance.

Technical Data

Feature Specification
Input Voltage 110-240V AC
Output Current Up to 10A
Control Method PWM (Pulse Width Modulation)
Speed Range 0-3000 RPM
Temperature Range -10°C to 50°C
Dimensions 200mm x 150mm x 100mm
Weight 1.5 kg
Protection Class IP65 (Dust and Water Resistant)
Communication Interface RS485, Modbus
Programming Method PC Software, Manual Input

Conclusion

The Spinpro E9n Speed Programmer Controller is an essential tool for anyone looking to enhance the performance of their motor systems. With its robust features, user-friendly design, and customizable settings, it stands out as a reliable solution for various industrial applications. Whether you are looking to improve efficiency, reduce energy costs, or simply gain better control over your motor operations, the E9n is a top choice that delivers exceptional results.
