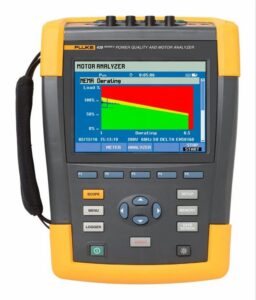

Power Quality Analyzer
Product Description
A Power Quality Analyzer is an advanced instrument designed to monitor, record, and analyze the quality of electrical power in various systems. It provides critical insights into voltage, current, frequency, harmonics, and other electrical parameters that can affect the performance and efficiency of electrical equipment. By identifying power quality issues such as voltage sags, swells, transients, and harmonics, this device helps in maintaining the reliability and longevity of electrical systems.
Power Quality Analyzers are essential tools for electrical engineers, facility managers, and maintenance personnel in industries ranging from manufacturing to commercial buildings. They enable users to ensure compliance with power quality standards, optimize energy consumption, and reduce operational costs associated with power disturbances.
Uses
- Monitoring Power Quality: Continuous tracking of voltage, current, and frequency to ensure stable power supply.
- Troubleshooting: Identifying and diagnosing power quality issues that can lead to equipment failure or inefficiency.
- Compliance Testing: Ensuring that electrical systems meet regulatory standards and guidelines for power quality.
- Energy Audits: Analyzing energy consumption patterns to identify opportunities for energy savings.
- Harmonic Analysis: Measuring and analyzing harmonic distortion to mitigate its effects on sensitive equipment.
- Data Logging: Recording power quality data over time for historical analysis and reporting.
Technical Data
| Feature | Specification |
|---|---|
| Input Voltage Range | 100V to 600V AC |
| Current Measurement Range | 0.1A to 1000A AC |
| Frequency Range | 45Hz to 65Hz |
| Harmonic Analysis | Up to 50th harmonic |
| Display Type | LCD with backlight |
| Data Storage Capacity | Up to 1 million readings |
| Communication Interface | USB, RS-232, Ethernet |
| Battery Life | Up to 12 hours |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 250mm x 200mm x 100mm |
| Weight | 1.5 kg |
| Certifications | CE, UL, ISO 9001 |
Key Features
- Real-time Monitoring: Provides live data on power quality parameters.
- User-friendly Interface: Intuitive controls and display for easy operation.
- Portable Design: Lightweight and compact for easy transport and setup.
- Advanced Analysis Tools: Software included for in-depth analysis and reporting.
- Multi-channel Measurement: Simultaneous monitoring of multiple circuits.
Conclusion
The Power Quality Analyzer is an indispensable tool for anyone involved in the management and maintenance of electrical systems. Its ability to provide detailed insights into power quality not only helps in troubleshooting and compliance but also plays a crucial role in enhancing the overall efficiency and reliability of electrical installations.
